Carshalton Surrey SM5 • Local Project Case Study

Rising Damp Treatment in Carshalton SM5

Q: What are common signs of rising damp?

Possible signs include damp patches low on walls, salt deposits, peeling decorations, damaged plaster, musty smells and deterioration near skirting level. These symptoms should be investigated because they can have more than one cause.

An Atruss Preservation case study covering the investigation and remedial treatment of damp affecting the lower walls of a residential property in Carshalton, South West London.

Call 07984 712 428 View Project Gallery

Carshalton Rising Damp Case Study

This Carshalton SM5 project involved damp symptoms affecting the lower section of internal walls. A diagnosis was required before specifying treatment because low-level moisture may be caused by rising damp, a bridged damp proof course, high external ground levels, leaking services or penetrating moisture.

The investigation considered the existing damp proof course, external paving and soil levels, the distribution of moisture within the masonry, salt contamination and the condition of the plaster.

Where the evidence supports rising damp and the existing DPC is absent or ineffective, the remedial specification can include a new damp proof course, removal of contaminated plaster and a suitable salt-resistant reinstatement system.

Signs Investigated

Damp staining around the lower sections of walls
Damaged, hollow or deteriorated plaster
Salt deposits and contaminated wall finishes
A potentially defective or bridged damp proof course
External paving and ground levels relative to the DPC
The moisture profile across the affected masonry

LocationCarshalton, Surrey SM5

ProblemSuspected rising damp

ServiceDamp proofing and DPC work

ContractorAtruss Preservation

How the Rising Damp Work Was Approached

The final treatment must follow the evidence found at the property. The typical sequence used for this type of Carshalton remedial project is:

Investigation

Inspect external walls, ground levels, rainwater details and internal symptoms to identify the likely moisture source.

Preparation

Protect the work area and remove skirtings plus defective or salt-contaminated plaster where required.

DPC Treatment

Install a suitable remedial damp proof course where the investigation confirms that DPC treatment is appropriate.

Reinstatement

Apply the agreed plaster or render specification and prepare the wall for decoration after sufficient drying.

Carshalton SM5 Rising Damp Project Gallery

Nine project photographs can show the original condition, preparation, damp proof course installation and completed restoration.

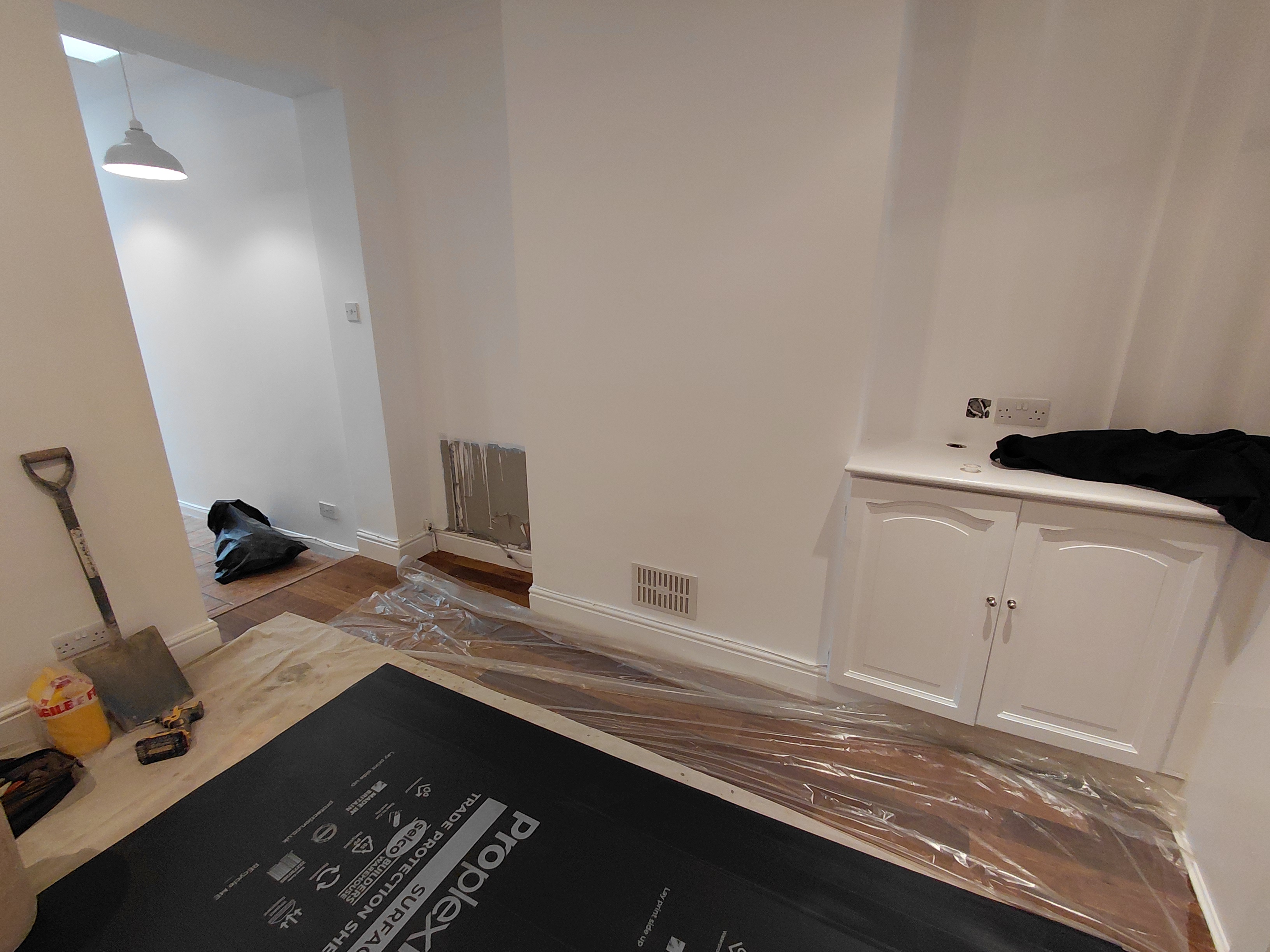

Rising damp affected wall in Carshalton SM5 before damp proofing — 1. Damp-affected wall before remedial work.

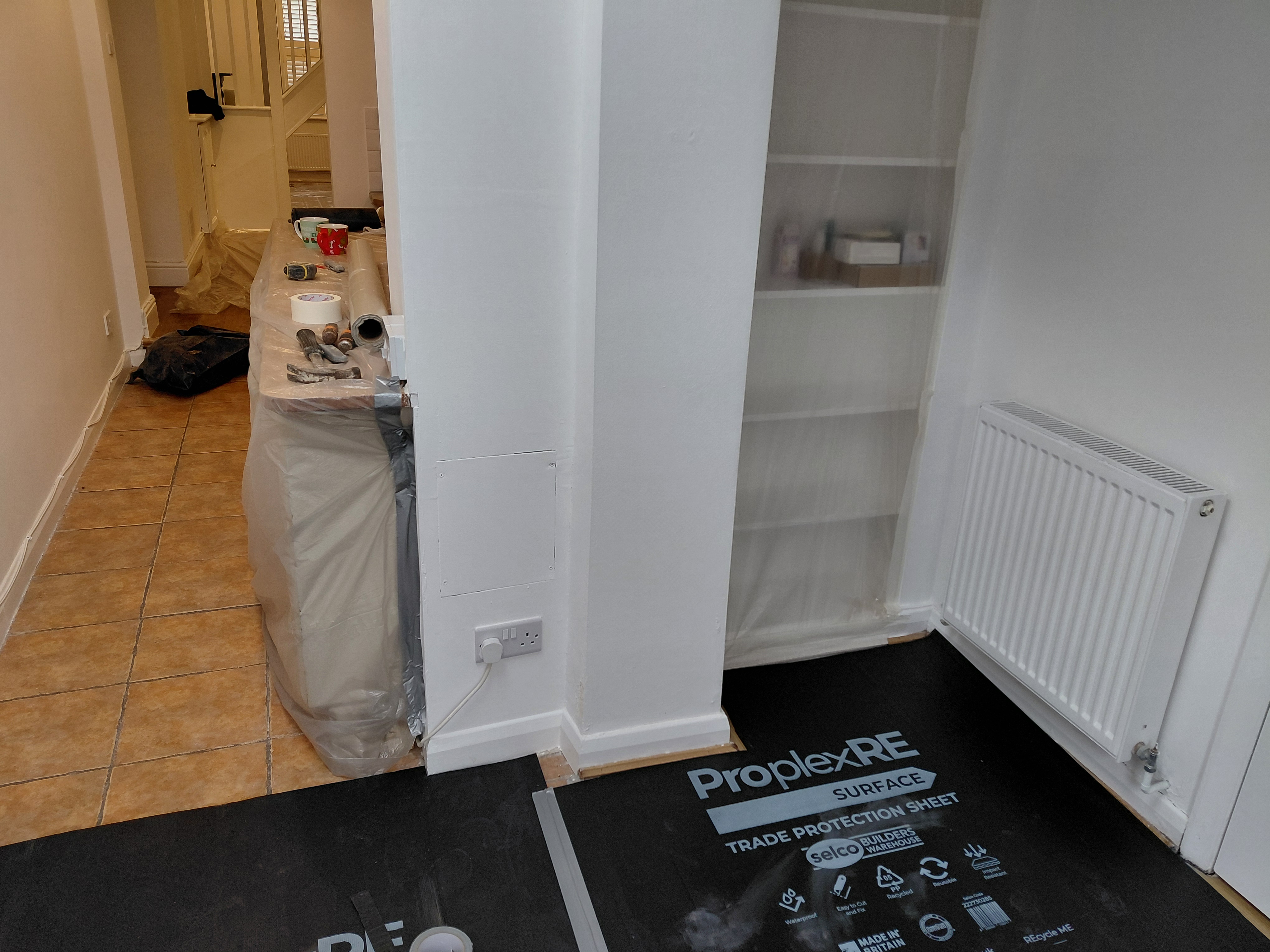

Low-level damp and damaged plaster in Carshalton property — 2. Low-level damp and plaster deterioration inspected.

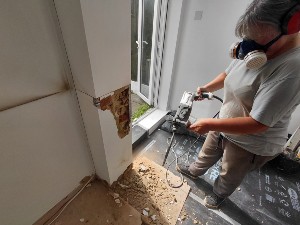

Removal of salt contaminated plaster during Carshalton damp proofing work — 3. Contaminated and defective plaster removal.

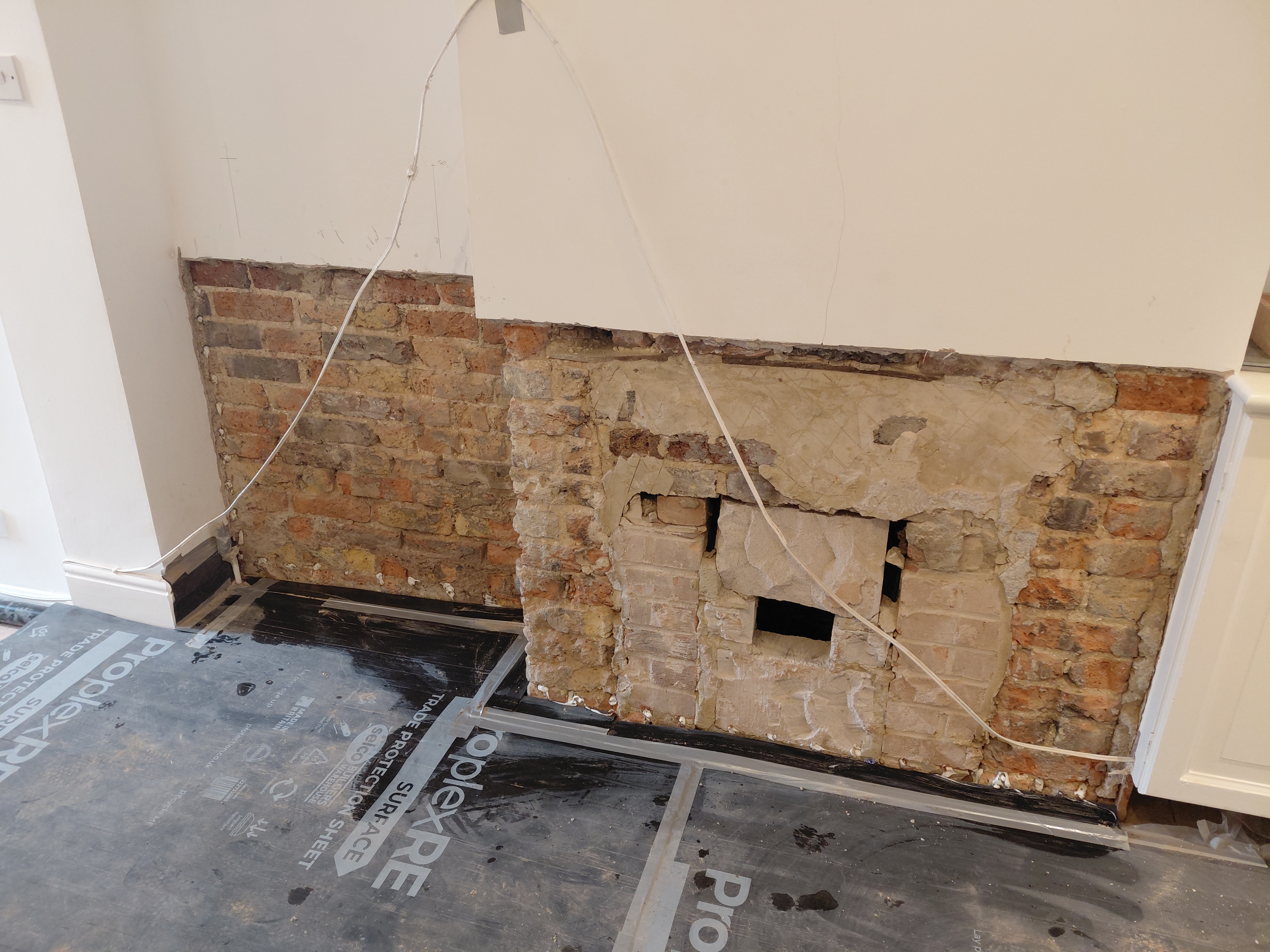

Masonry wall preparation for damp proof course in Carshalton SM5 — 4. Masonry exposed and prepared for treatment.

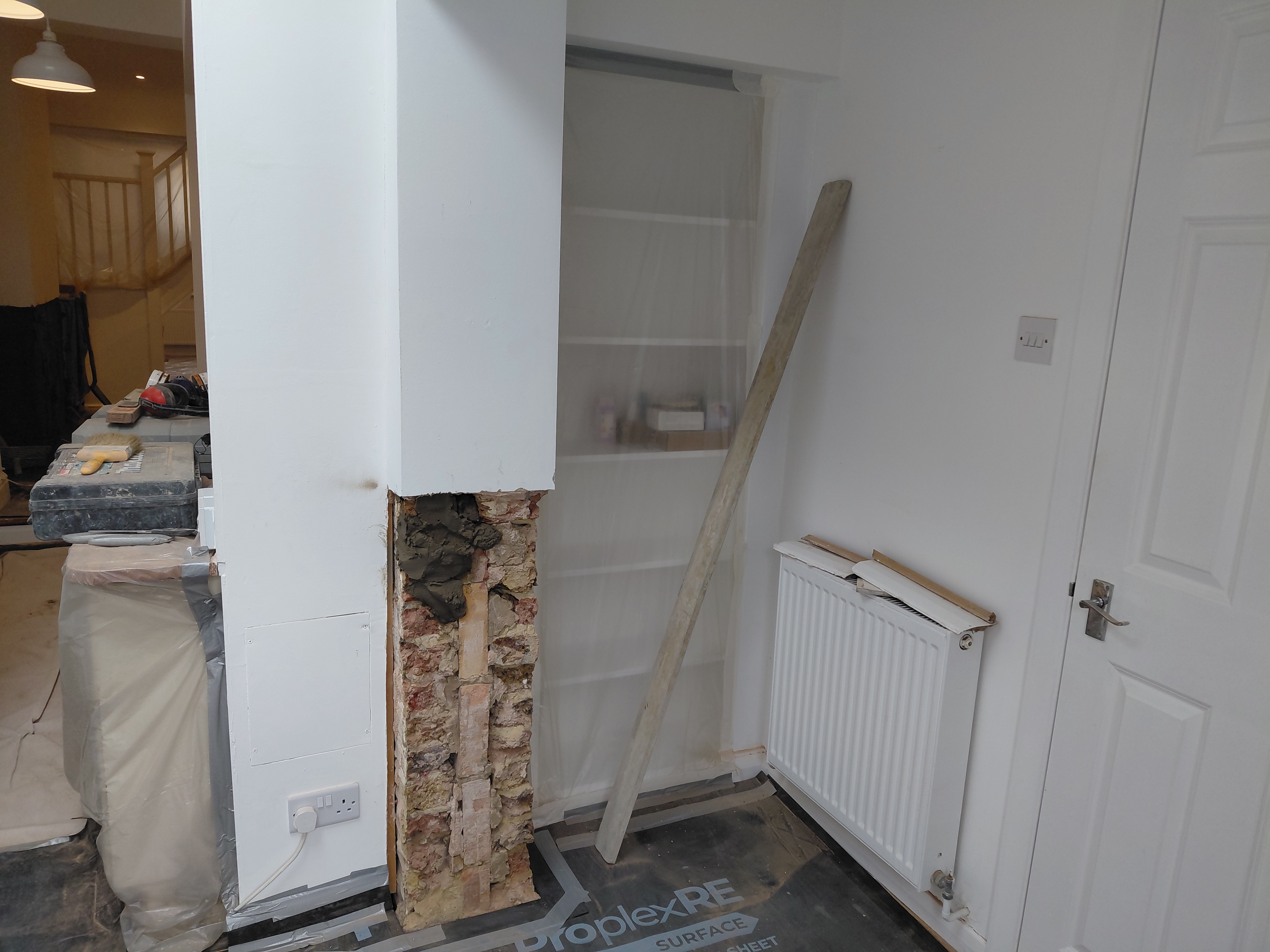

Damp proof course installation during rising damp treatment in Carshalton — 5. Remedial damp proof course treatment stage.

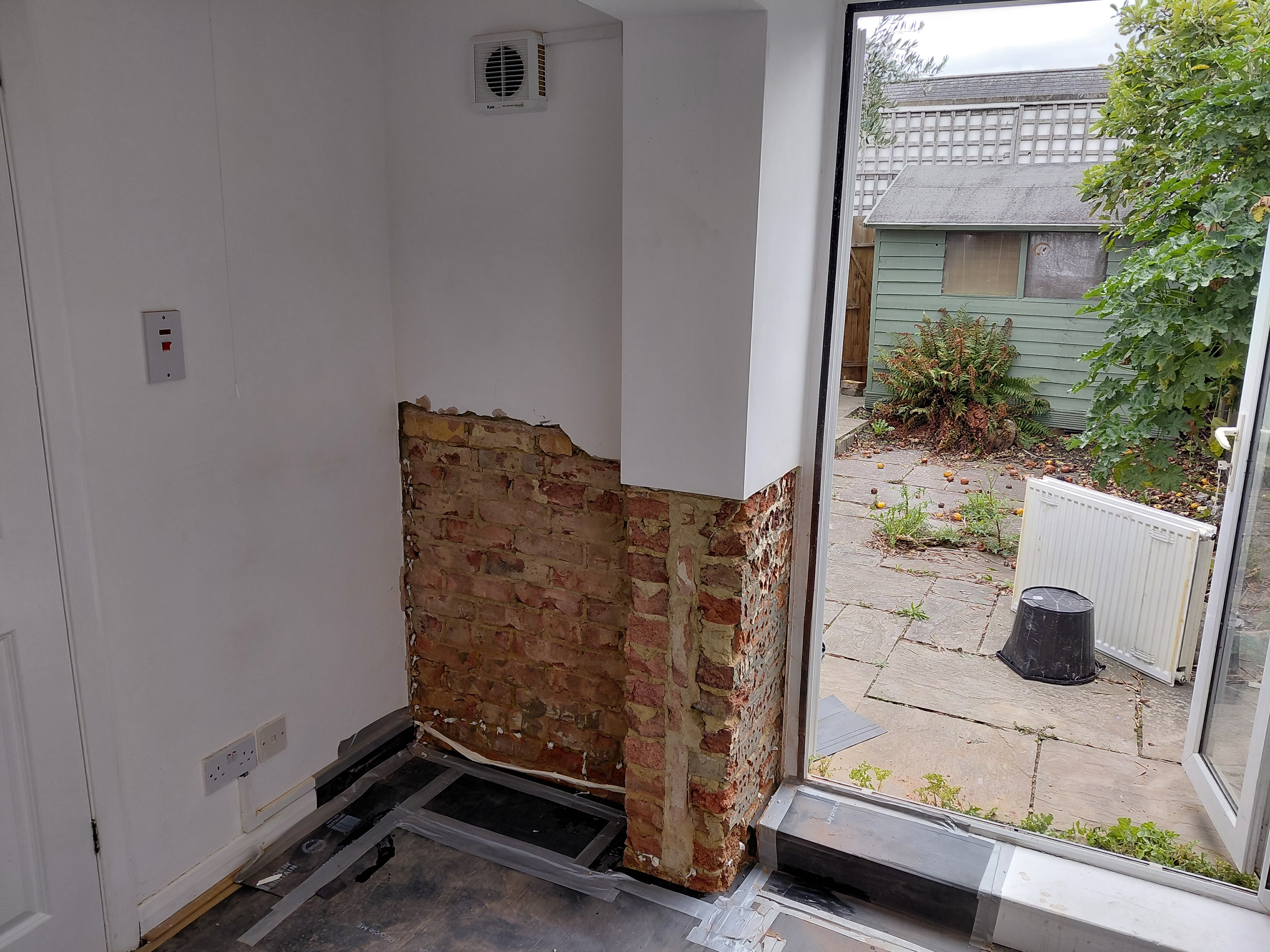

Specialist Dyzone DPC installed in Carshalton property — 6. Specialist Dryzone DPC installed.

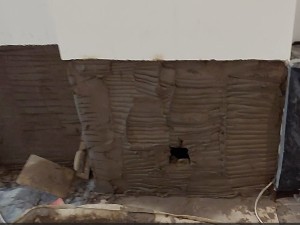

Backing coat of Sika 1 render applied in Carshalton SM5 — 4. 1st coat of specialist render applied.

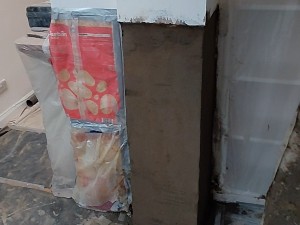

Further coats of render to bring out wall for plastering in Carshalton — 5. Remedial damp proof course treatment stage.

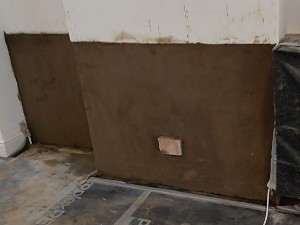

Specialist 2nd damp-resistant render coat applied in Carshalton property — 6. Specialist 2nd render reinstatement system applied.

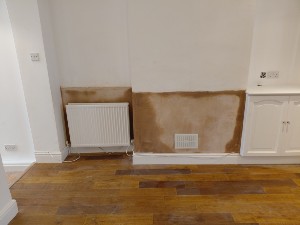

Plaster restoration after rising damp treatment in Carshalton — 7. Walls finished plastered.

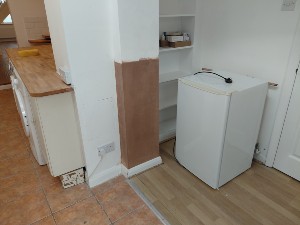

Replastered wall following DPC treatment in Carshalton SM5 — 8. Replastered wall following treatment.

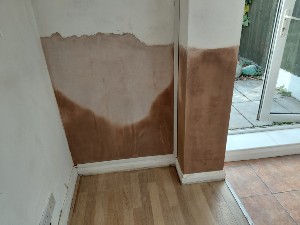

Completed rising damp treatment case study in Carshalton Surrey — 9. Completed Carshalton remedial damp work.

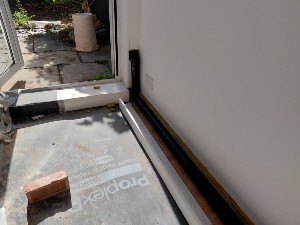

Extra ventilation was created from back of proerty to sub floor in Carshalton — 7. External through lounge ventilation created to subfloor.

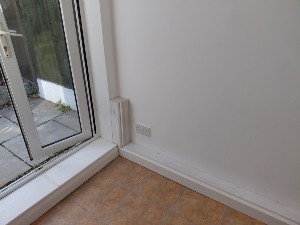

boxing in of ventilation pipes following DPC treatment in Carshalton SM5 — 8. Boxing in of ventilation pipes create added ventilation.

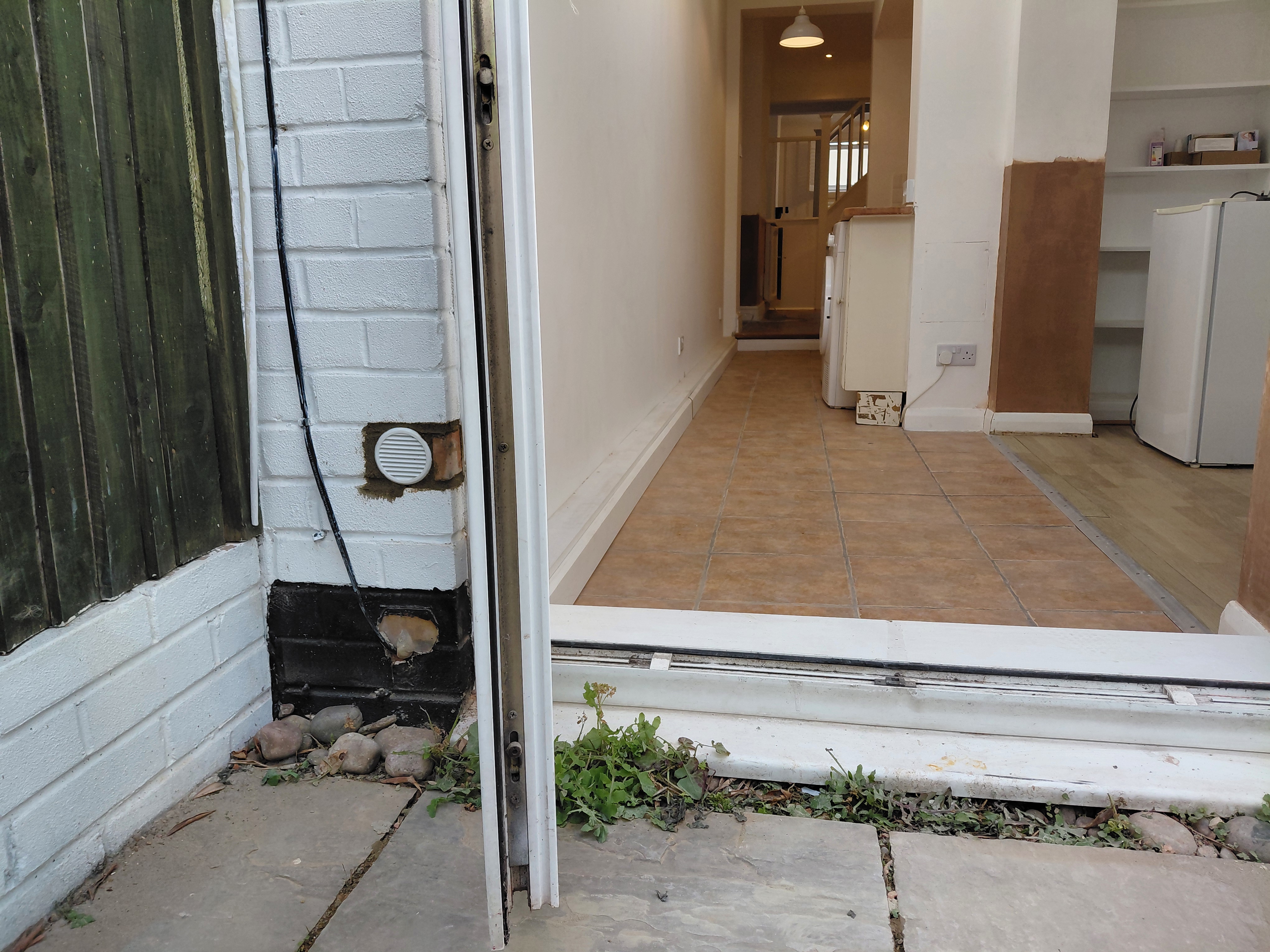

External vent fitted following pipe and boxing in work in Carshalton Surrey — 9. Completed increased subfloor ventilation from reaised floor over concrete floor to rear garden following remedial damp work.

Rising Damp in Carshalton Properties

Carshalton includes Victorian and Edwardian houses, inter-war properties, later homes and converted buildings. The construction, age and subsequent alterations to each property affect how damp should be investigated.

Raised patios, driveways, flower beds and paths can sometimes reduce the clearance below a damp proof course or bridge it. Defective rainwater goods, external pointing, plumbing and ventilation should also be checked before attributing every damp patch to rising damp.

Atruss Preservation provides damp investigation, rising damp treatment, new DPC installation, high-ground-level solutions, damp plaster repairs, waterproofing and related property-preservation work throughout Carshalton and the London Borough of Sutton.

Sutton and Carshalton Damp Proofing Rising Damp Treatment

Areas Near Carshalton

Sutton Banstead Purley Croydon Epsom Colliers Wood

Local coverage also includes Carshalton Beeches, The Wrythe, St Helier, Wallington, Hackbridge, Beddington, Belmont, Cheam, Rosehill and surrounding SM5 areas.
